KNOLL MA1250 12 x 50 Watts RMS @ 8 Ohms Multi Zone Amplifier

<< Previous in Multi Zone Controllers / Amplifiers Next in Multi Zone Controllers / Amplifiers >>
KNOLL MA1250 12 x 50 Watts RMS @ 8 Ohms Multi Zone Amplifier
Retail Price: $798.00
Thunder AV Price: $589.95
You Save: $208.05 (26 %)
Call/Email for Availability
Item Number: MA1250
Manufacturer: Knoll Systems
Manufacturer Part No: MA1250
Condition: New
The MA1250 is the third generation of an amplifier with legendary reliability. 12 channel amplifiers have been built by Knolll Systems in Canada since 1996. The MA1250 heraldes a new era in multi-channel, high-quality, affordable power amplifiers. The MA1250 is designed to meet the amplifier needs of custom installed multi-zone systems where high quality sound is a specific requirement.

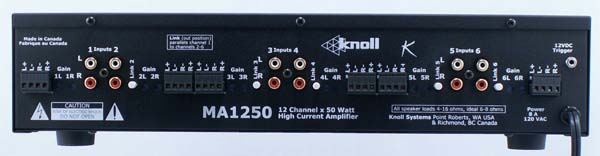

Extras such as the external voltage trigger that can turn the MA1250 on and off, gold input connectors, individual level or gain controls and channel link give the MA1250 exceptional value when installed in large complex systems. Except for the power switch all controls are rear mounted.
# Cost and size efficiency. The MA1250 consists of a total of 12 power amplifiers in one 3-1/2" high enclosure (two rack spaces). Each power amplifier channel can deliver 50 watts RMS with peaks of 100 watts. Because of its unique design the MA1250 delivers exceptional value.


# Automatic protection circuitry. Each MA1250 channel is individually and fully protected against low impedance, overheating, overloading, overvoltage and undervoltage. The protection circuitry automatically restores the amplifier channel as soon as its parameter returns to the safe operating area.


# Individual level or gain adjustment. Each channel features an input level or gain adjustment pot to precisely adjust each channel for source and speaker sensitivity variations. The gain adjustments are on the rear of the MA1250 as installers normally set the gain.


# External power on/off. The MA1250 can be turned off and on by external controllers. To activate the external or remote on/off a DC 12 volt current is applied to the trigger jack (MA1250 power switch is in the off position for external power control.


# Channel link. Channel link allows the installer to link any or all of stereo channels two through six to channel one (left and right) without using Y cords or external adaptors. In certain applications this feature reduces installation time, costs and wire "clutter".


# MA1250 with internal fan. The MA1250 features an even quieter internal fan to increase the long term power output capability of the MA1250.


Specifications:
Inputs 12 Gold RCA jacks with adjustable gain
Input impedance 50k ohms
Outputs detachable 4 position plugs (fits 12 g wire)
Output power 50 watts RMS per channel (8 ohms)
Peak output power 100 watts per channel (8 ohms)
Ideal impedance 4 - 8 ohms
Frequency response 10 Hz - 40 kHz +/- 1dB (1w)
S/N ratio over 105 dB A weighted (50 watts)
THD distortion less than 0.1% 20 Hz to 20 kHz
IMD distortion less than 0.01% 60 Hz 7 kHz 4:1 (SMPTE)
Trigger control 12 VDC 35mA on 3.5mm mono jack
Dimensions 17" x 3.5" x 11.5" (432 x 89 x 292mm)
Fan Noise quiet 26 dBA
Power 750 watts at 117 VAC or 230VAC
Weight 21 lbs (9.5 kg)
