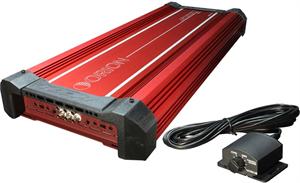

Orion HCCA4000.4H HCCA 4 X 600 RMS WATTS @ 4 OHM STEREO 4 Channel High Current Class H Competition Amplifier

<< Previous in Amplifiers Next in Amplifiers >>

Orion HCCA4000.4H HCCA 4 X 600 RMS WATTS @ 4 OHM STEREO 4 Channel High Current Class H Competition Amplifier
free shipping
Retail Price: $1,549.99
Thunder AV Price: $1,290.00
You Save: $259.99 (17 %)
Item Number: HCCA4000.4H
Manufacturer: Orion
Manufacturer Part No: HCCA4000.4H
Condition: New
    • Orion has transformed the HCCA amplifiers to a super powerful sound machine. In the new class D HCCA amplifiers for woofers, the power is being calculated at only 12.6 volts and only with a 0.5% THD which makes these amplifiers very powerful ones. They are truly sound monsters starting at 5000 watts RMS up to the super powerful HCCA 20000.1d that gives an amazing and truly twenty thousand watts; something really and unbelievably amazing. All the (4) channels and (2) channels were modified by incorporating a high pass cut system that allows you to multiply by (10) the frequency and take it all the way to 15khz. Technology, quality and extreme power were combined to create efficient and very powerful amplifiers, to satisfy the most demanding customers of our industry whose satisfaction is only the best.
    • 4 X 600 RMS WATTS @ 4 OHM STEREO 12.6V
    • 4 X 1000 RMS WATTS @ 2 OHM STEREO  12.6V
    • 2 X 2,000 RMS WATTS @ 4 OHM BRIDGE 12.6V
    • 4 X 844 RMS WATTS @ 4 OHM STEREO 14.4V
    • 4 X 1125 RMS WATTS @ 2 OHM STEREO 14.4V
    • 2 X 2250 RMS WATTS @ 4 OHM BRIDGE 14.4V
    • TOTAL POWER WATTS NOMINAL 9,000
    • Amplifier Efficiency > 67% into 2Ω load at max. power
    • Signal to Noise ratio at rated output power and lowest impedance > 95dB
    • Remote Gain Function
    • Distortion at Rated Power 0.005% THD+N
    • Frequency Response 10 Hz to 35kHz +/- 1 dB
    • Linear Bandwidth 20 Hz to 65kHz +/- 3 dB
    • Damping Factor > 100
    • Input Sensitivity(rms) 200mV to 4V
    • Supply Voltage Range 9 to 16V
    • Protection thermal, DC offset, short protection, undervoltage, over-voltage
    • Terminal Wire Gauge Power 0 AWG, Remote 10 AWG, Ground 4 AWG, Speaker 10 AWG
    • Input Impedance 20K Ohms
    • Balanced input (CMRR)
    • Dimensions(inches) 33.1 x 11.7 x 2.8
    • Crossover Section
    • High Pass Crossover Continuously variable (40-1.25kHz/400-12.5kHz)
    • Low Pass Crossover Continuously variable (40-300Hz)
    • Phase shift control 0 to 180
    • Bass Boost 0-18dB variable
