Earthquake PowerHouse PHS5000.1 Shredder 5000W RMS at 1 Ohm Class D Full Range Mono Amplifier

<< Previous in Amplifiers Next in Amplifiers >>

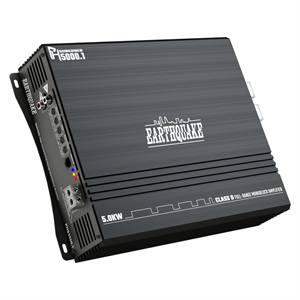

Earthquake PowerHouse PHS5000.1 Shredder 5000W RMS at 1 Ohm Class D Full Range Mono Amplifier
Earthquake PowerHouse PHS5000.1 Shredder 5000W RMS at 1 Ohm Class D Full Range Mono AmplifierEarthquake PowerHouse PHS5000.1 Shredder 5000W RMS at 1 Ohm Class D Full Range Mono AmplifierEarthquake PowerHouse PHS5000.1 Shredder 5000W RMS at 1 Ohm Class D Full Range Mono Amplifier
free shipping
Retail Price: $899.99
Thunder AV Price: $854.99
You Save: $45.00 (5 %)
Item Number: PHS5000.1
Manufacturer: Earthquake Car Audio
Manufacturer Part No: PHS5000.1
Condition: New
  • Built for the audio nuts out there that eat, sleep, and breathe SPL, the Shredder makes its return for your chassis flexing and window shattering enjoyment. Earthquake Sound is proud to bring to you the all-new PowerHouse Shredder Series. These full-range digital high current monoblock amplifiers are weapons of mass destruction that are well equipped for the most demanding of mobile audio addicts and bassheads. From the heavy-duty heat sinks to the massive terminals, PHS amps deliver brute power to drive the biggest speakers all while staying ice cold. With so much power at your disposal you’d think you’d need a license to own one.
  • Available in three models to take on the most power-hungry speakers, PowerHouse Shredder series amplifiers stay cool and composed even under hard and continuous use while operating in the range of 99% efficiency. With a full range frequency response from 15Hz to 20kHz, PHS amplifiers can accept a broad variety of speakers to suit your musical needs. When high output with minimal distortion is required, look no further than Earthquake Sound’s PowerHouse Shredder series to get the job done. Shredder amplifiers are built to perform folks, so build your enclosures well. We’ll break 'em.

Specifications

  • Channels: 1
  • Class: Digital Class D
  • Power Output @ 1Ω: 5000 WRMS @ 1% THD
  • Power Output @ 2Ω: 3500 WRMS @ 1% THD
  • Power Output @ 4Ω: 1600 WRMS @ 1% THD
  • Frequency Response: 15Hz–20kHz
  • High Pass Filter: 15Hz–80Hz
  • Low Pass Filter: 80Hz–20kHz
  • Bass Boost Range: 35Hz–70Hz
  • Bass Boost Level: 0–12dB
  • Signal-to-Noise Ratio: 90dB
  • Gain Min/Max: 5V–0.2V
  • Efficiency: 99%
  • Output Noise: 16mV
  • Full Rated Power Current Draw: 378A Gain At Max
  • Fuse Rating: 1Ω 250A / 2Ω 175A / 4Ω 150A
  • Minimum Wire Gauge Size: 1Ω 4–2 Gauge / 2Ω 2 Gauge / 4Ω 1 Gauge
  • Dimensions (H x W x D): 2.58″ (65mm) x 11.5″ (292mm) x 8.99″ (288mm)
  • Weight: 8.08 lbs (3.67 kgs)
