Earthquake Cinenova IR16 16 x 50 Watts RMS 8 ZONE MultiRoom Amplifier Kit with 8 WALL KEYPADS, 8 REMOTES Factory B Stock

<< Previous in Multi Zone Controllers / Amplifiers Next in Multi Zone Controllers / Amplifiers >>

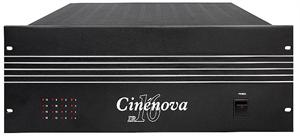

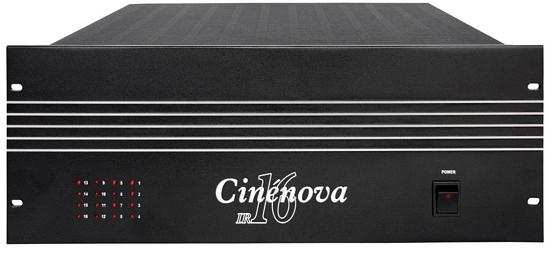

Earthquake Cinenova IR16 16 x 50 Watts RMS 8 ZONE MultiRoom Amplifier Kit with 8 WALL KEYPADS, 8 REMOTES Factory B Stock
Earthquake Cinenova IR16 16 x 50 Watts RMS 8 ZONE MultiRoom Amplifier Kit with 8 WALL KEYPADS, 8 REMOTES Factory B StockEarthquake Cinenova IR16 16 x 50 Watts RMS 8 ZONE MultiRoom Amplifier Kit with 8 WALL KEYPADS, 8 REMOTES Factory B StockEarthquake Cinenova IR16 16-Channel x 50 Watts RMS 8 ZONES, 8 WALL KEYPADS, 8 REMOTES MultiRoom Amplifier Kit B-Stock
Retail Price: $4,299.00
Thunder AV Price: $2,399.95
You Save: $1,899.05 (44 %)
Item Number: Cinenova 16B B
Manufacturer: Earthquake Home Audio
Manufacturer Part No: Cinenova 16B B
Condition: Refurbished
Factory B Stock!
  • Born in the USA!
  • The second generation multi-zone amplifier, the Cinenova IR16, has the power no other multi-zone amplifier in the market can equal. Designed with 8 individual power supplies (bifilar) for power isolation, accuracy, and better channel separation, this rack-mountable amplifier can deliver up to 150 Watts RMS, a power rating that is almost unheard of for multi-zone amplifier.
  • The bridgeable output design enables the Cinnova IR16 to accommodate 4-Ohm and 8-Ohm speakers. Moreover, the LOCAL/BUS input audio selector on each of the eight zones allows it to amplify either a single source or up to 8 different inputs/sources. The Cinnova IR16 amplifier includes eight sets of external gain keypads and remote controls with IR capability for great flexibility and user-friendly adjustments.
  • Whether you seek more power or more options, the Cinnova IR16 will give you more than you can ever expect for a multi-zone amplifier.
  • Bridgeable output
  • Zone IR control with individual digital pad
  • Decor friendly keypads
  • Four built-in IR repeaters
  • Rear gain control limiter to limit the output gain of the zone pad
  • LOCAL/BUS input audio selector for each zone
  • 12V DC trigger
  • Individually driven amplifier blocks (each block is driven by a discrete complementary output class A/B stage with selected components
  • Individual power supplies (bifilars) for power isolation, accuracy, and better channel separation
  • SPECIFICATIONS
  • Number of channels 16 Channels
  • Power rating per channel
  • (4-Ohm stereo), all channels driven: 75 Watts RMS
  • (4-Ohm bridged), 8 channels: 150 Watts RMS
  • (8-Ohm stereo), all channels driven: 50 Watts RMS
  • (8-Ohm bridged), 8 channels: 100 Watts RMS
  • Frequency response: 20Hz - 20kHz at -0.3dB
  • Total Harmonic Distortion - THD: 0.01%
  • Input sensitivity (for rated output power): 200mV - 3V
  • Input impedance
  • Independent channels 22 k
  • Bus Input 70 k
  • Signal to noise ratio: 92dB
  • AUTO OFF delay time: 12 minutes
  • Crosstalk: >86dB
  • Slew rate: 50V/sec
  • Gain: 29
  • Damping Factor: > 200 @ 8
  • Remote trigger voltage: 5.5 - 28 VDC
  • Power requirement: 15 Amp 120VAC 60Hz / 10 Amp 220VAC 50Hz
  • Fuse ratings:
  • Main power fuse: 115V,T15A/250V / 230,T10A/250V
  • Block fuse: 3 AG type, slow blow 5A/250V
  • Weight
  • Net weight: 61.7 lbs / 28 kg
  • Gross weight: 66.1 lbs / 30 k
  • Dimensions
  • Face plate (W x D x H): 19 (482.6mm) x 0.47 (12mm) x 6.87 (174.5mm)
  • Mounting (W x H): 18.37 (466.5mm) x 4 (101.5mm)
  • Chassis (W x D x H): 16.65 (423mm) x 17 (405mm) x 6.71 (170.5mm)
